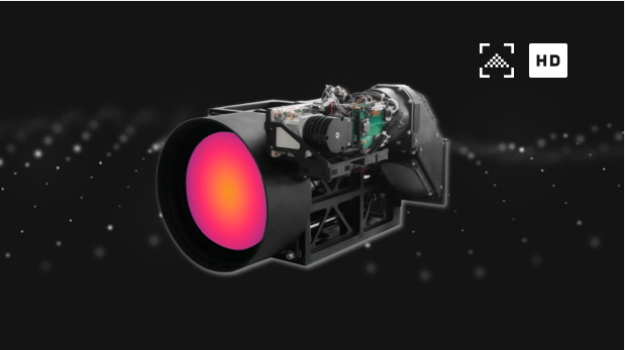

XH CP360 High-Definition Reverse-Scan Dual-Step Zoom Infrared Thermal Imager

XH CP360 High-Definition Reverse-Scan Dual-Step Zoom Infrared Thermal Imager

The product adopts a fully domestically developed design, integrated with a high-sensitivity mid-wave 1K cooled infrared core, delivering outstanding imaging performance. It is equipped with panoramic reverse-scan imaging compensation, enabling high-frame-rate HD array output.

分类：

Specifications:

ItemSpecification
Detector Resolution1280 × 1024
Pixel Size15 μm
Spectral Range3.7 ~ 4.8 μm
NETD≤ 20 mK
Focal Length180 / 360 mm
F-numberF/2
InterfaceCameraLink / SDI
Weight≤ 17 kg
Operating Temperature-30°C ~ +65°C
Dimensions≤ 485 × 325 × 270 mm
Image AdjustmentBrightness / Contrast / Polarity Adjustment, Non-Uniformity Correction (NUC),
Digital Filtering, Detail Enhancement, etc.
