Key Features
Optimized Design
Ultra-compact size: 25.4 × 25.4 × 22.0 mm (core only)
Ultra-low power consumption, as low as 0.8 W
Clear Imaging & High-Accuracy Temperature Measurement
New-generation image algorithms including NUC / 3DNR / DNS / DRC / EE
Temperature ranges: ?20 °C to 150 °C and 0 to 550 °C, with ±2 °C or ±2% accuracy
Universal Infrared Core Platform
Multiple image output interfaces: USB 2.0 / DVP / LVDS
SDKs available for Windows / Linux for temperature-measurement models
Application Scenarios

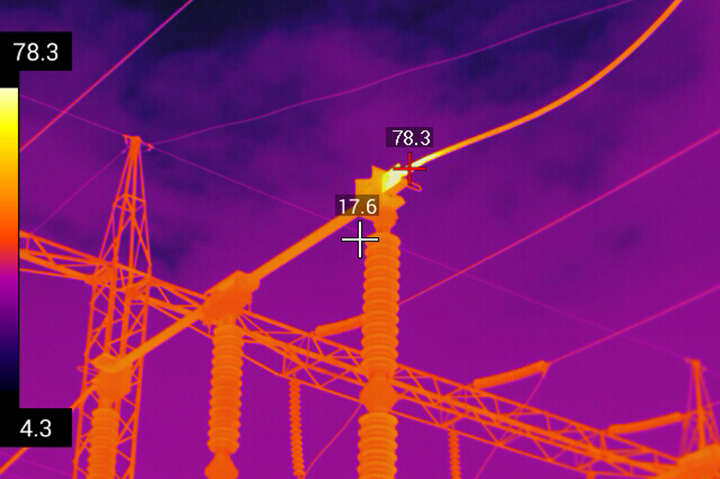

Industrial Temperature Measurement
Security Surveillance
UAV Payload
Night Vision Observation
Technical Specifications

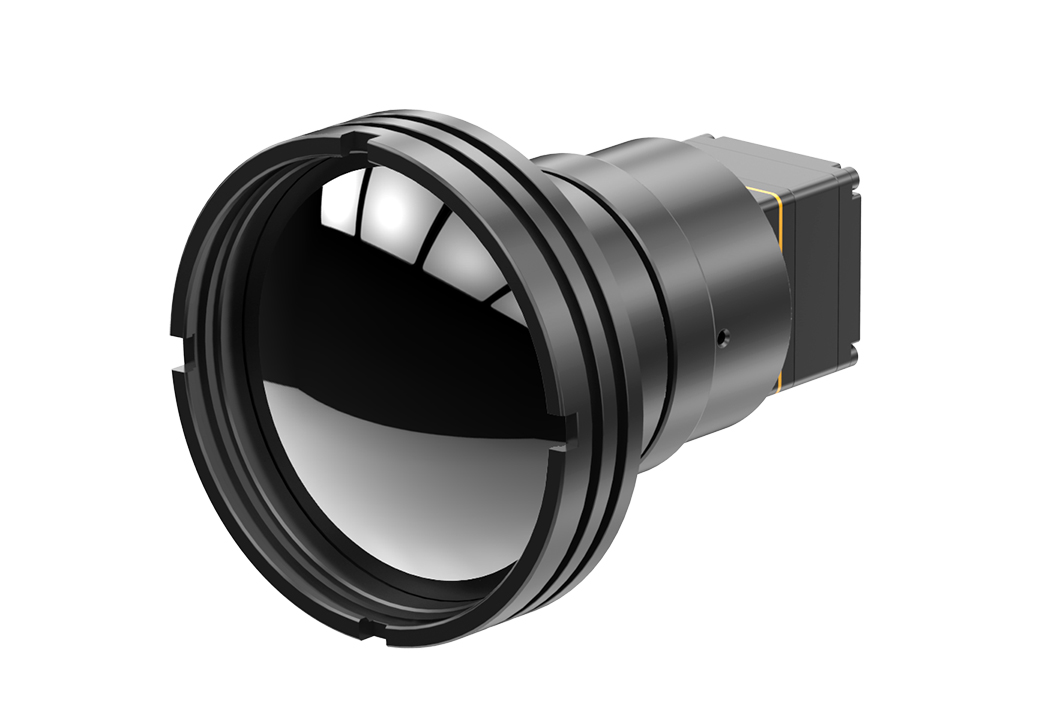

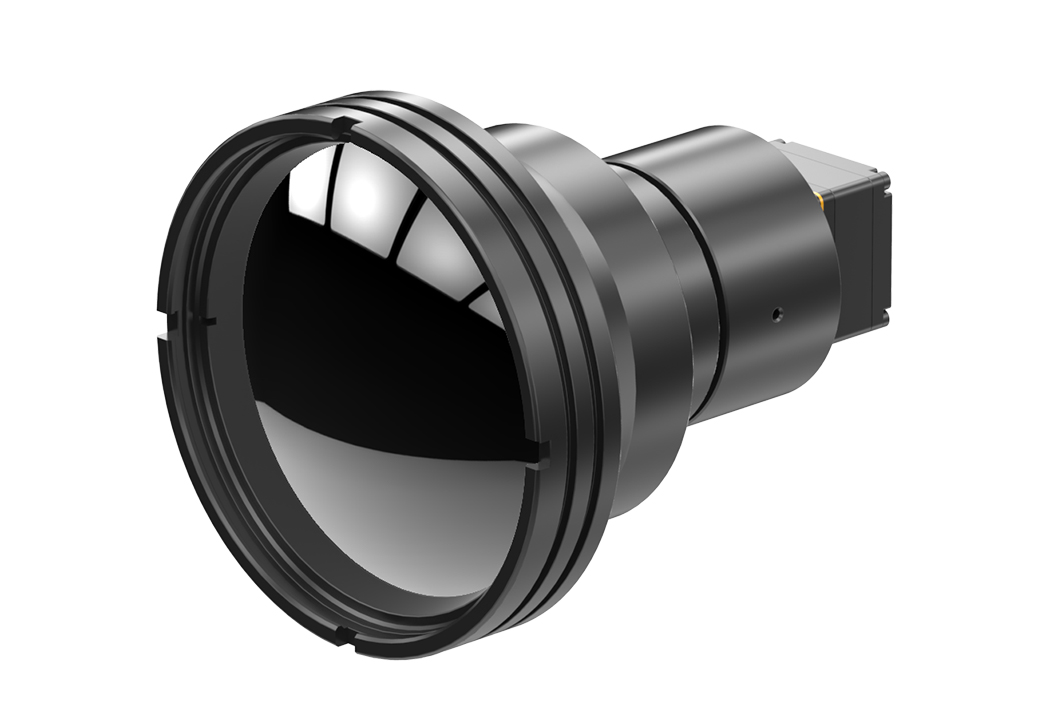

| Product Model | TWIN612/R Uncooled Infrared Standard Core |
| Detector Performance | |
| Resolution | 640 × 512 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8–14 μm |
| Typical NETD | < 30 mK |
| Image Processing | |
| Frame Rate | 25 Hz / 30 Hz |
| Startup Time | 5 s |
| Analog Video | PAL / NTSC |
| Digital Video | YUV / BT.656 / LVDS / USB 2.0 |
| Image Display | 11 palettes (White Hot / Lava / Iron Red / Light Green / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Highlight / Black Hot) |
| Image Algorithms | NUC / 3DNR / DNS / DRC / EE |
| Electrical Characteristics | |

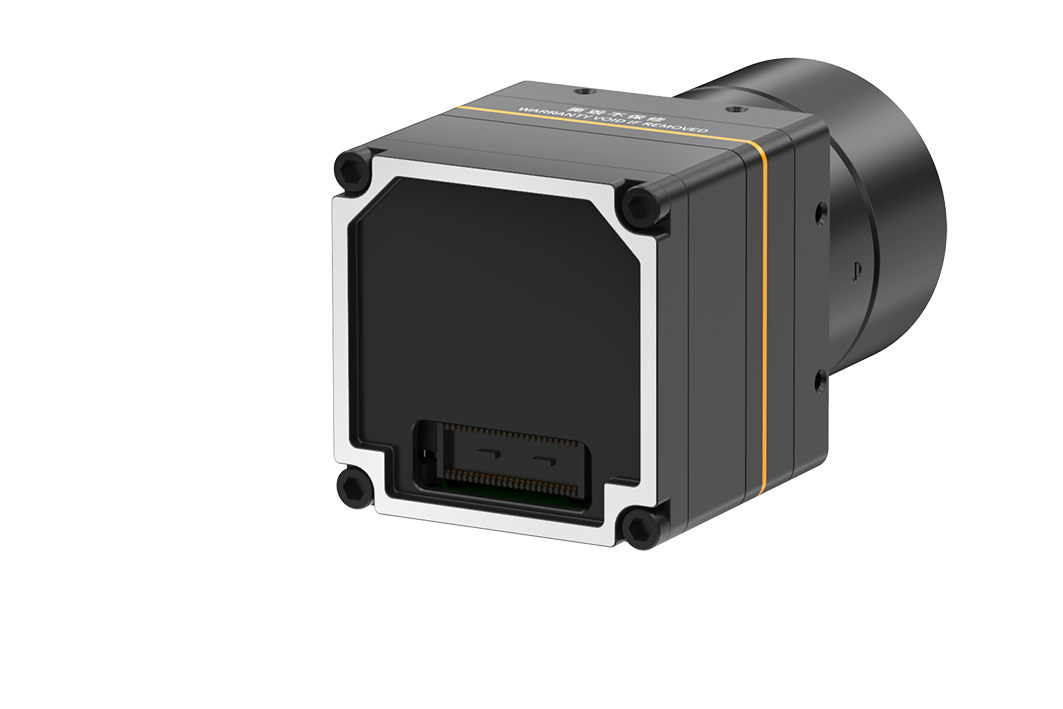

| Standard External Interface | 50-pin HRS Connector |
| Communication Interface | RS232 / USB 2.0 |
| Operating Voltage Range | 4–5.5 V |
| Typical Power Consumption | 0.8 W |
| Radiometric Functions | |
| Radiometric Operating Temperature | -10 °C to +50 °C |
| Temperature Measurement Range | -20 °C to 150 °C, 0 °C to 550 °C |
| Temperature Accuracy | ±2 °C or ±2% (whichever is greater) |
| SDK | Windows / Linux SDK available for radiometric versions, enabling video stream parsing and grayscale-to-temperature conversion |
| Physical Characteristics | |
| Dimensions (mm) | 25.4 × 25.4 × 22.0 mm (core only) |
| Weight | 20 g (core only) |
| Environmental Adaptability | |
| Operating Temperature | -40 °C to +70 °C |
| Storage Temperature | -45 °C to +85 °C |
| Humidity | 5%–95%, non-condensing |
| Vibration | Random vibration 5.35 g rms, 3 axes |
| Shock | Half-sine wave, 40 g / 11 ms, 3 axes, 6 directions |
| Optical Lenses | |
| Available Lenses | TWIN612 athermalized fixed focus: 13 mm / 19 mm / 25 mm / 35 mm / 50 mm / 70 mm TWIN612R athermalized fixed focus: 13 mm / 19 mm / 25 mm |
