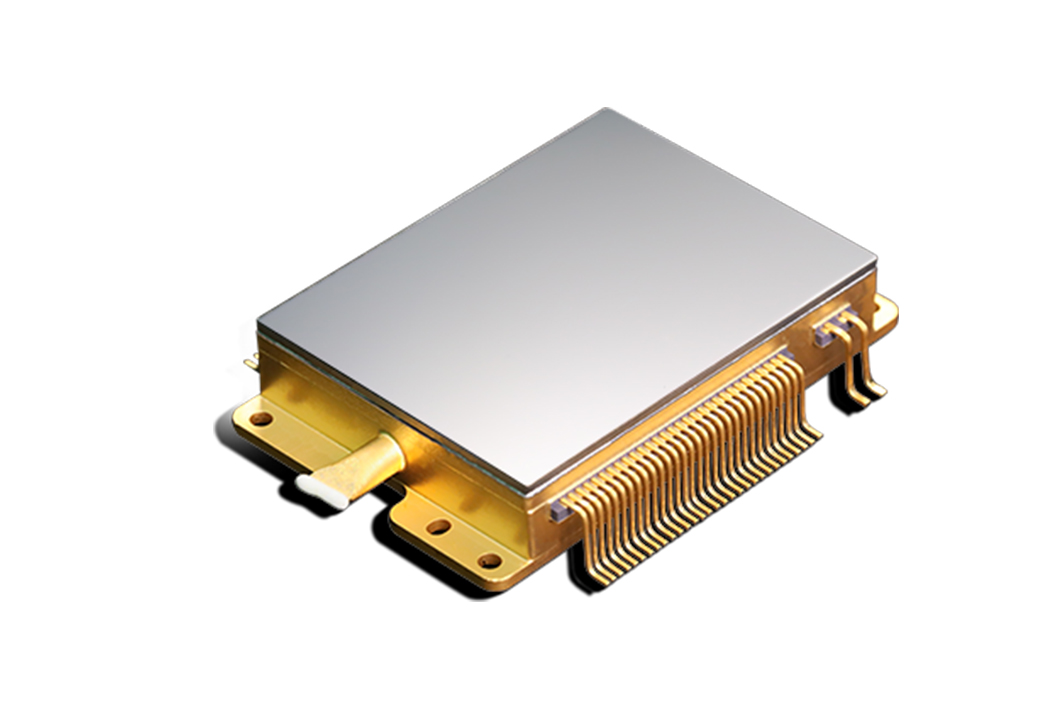

XH GST1212M Metal-Package Uncooled Infrared Detector

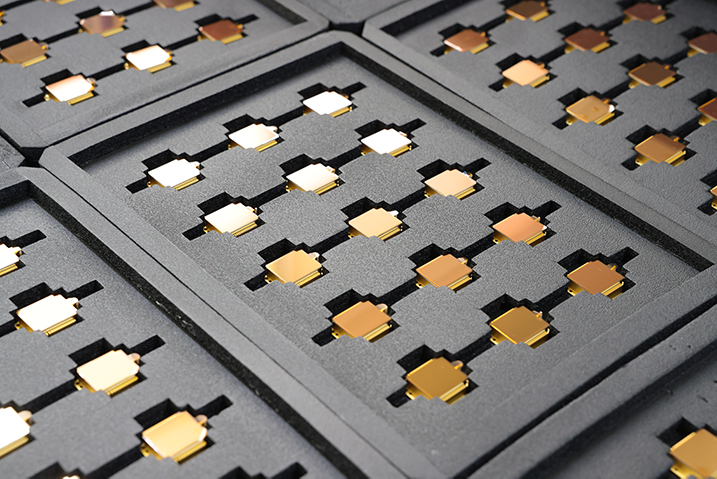

XH GST1212M Metal-Package Uncooled Infrared Detector - 图片 2

XH GST1212M Metal-Package Uncooled Infrared Detector

Classic and High-Resolution Thermal Imaging Solutions

Metal-package detectors with integrated TEC provide stable imaging, strong environmental adaptability, and high reliability.
The GST1212M, with 1280×1024 resolution, enables megapixel-level thermal imaging for power inspection, UAV payloads, and long-range surveillance.

分类：
Product Features

High-Resolution Imaging

800×600 focal plane array
Typical NETD < 30 mK

Designed for Demanding Inspection Applications

Built-in TEC for stable operation
Suitable for infrared thermography and night vision

Adaptable to Harsh Environments

Classic metal package
High reliability and durability

Applications
  • Temperature Measurement & Inspection
    Temperature Measurement & Inspection
  • Security Monitoring
    Security Monitoring
  • Epidemic Prevention & Medical
    Epidemic Prevention & Medical
  • Night Vision Observation
    Night Vision Observation
Technical Specifications
Product ModelGST1212M Uncooled Infrared Detector
Sensitive MaterialVanadium Oxide (VOx)
Array Format1280×1024
Pixel Pitch12μm
Spectral Range8-14μm
Typical NETD<50mK
Output SignalBuilt-in 14-bit ADC
Thermal Response Time<12ms
Maximum Frame Rate50Hz
Power Consumption<350mW
Dimensions (mm)45×28.5×8 (excluding pin size)
Weight<57g
Operating Temperature-40°C ~ +85°C
