XH EYAS330G Gas Detection Dedicated Infrared AD Module

XH EYAS330G Gas Detection Dedicated Infrared AD Module

Rapid Integration of Optical Gas Imaging Systems

The EYAS330G is a dedicated gas detection AD module based on the C330M-G MWIR cooled infrared detector.
It integrates high-performance signal processing electronics, enabling rapid development of optical gas imaging systems.

By converting invisible gas leaks into visible infrared images, it provides effective monitoring of methane and VOC leakage in oil and gas production, transportation, and processing, supporting environmental protection and emission reduction efforts.

Resolution: 320 × 256

Pixel Pitch: 30 μm

Spectral Range: 3.2 μm ±0.1 μm to 3.5 μm ±0.1 μm

Typical NETD: 10 mK (F1.5)

分类：
Product Features

Easy Development and Integration

CameraLink interface with 16-bit RAW output, serial control
Integrated structure with dimensions identical to the detector

Efficient, Safe, Wide-Area Gas Leak Detection

Long-range, non-contact, visualized gas detection
Detects alkanes, alkenes, alcohols, aromatics, ketones, and more

Designed for User Requirements

Supports 12 V power supply version for explosion-proof certification

Applications

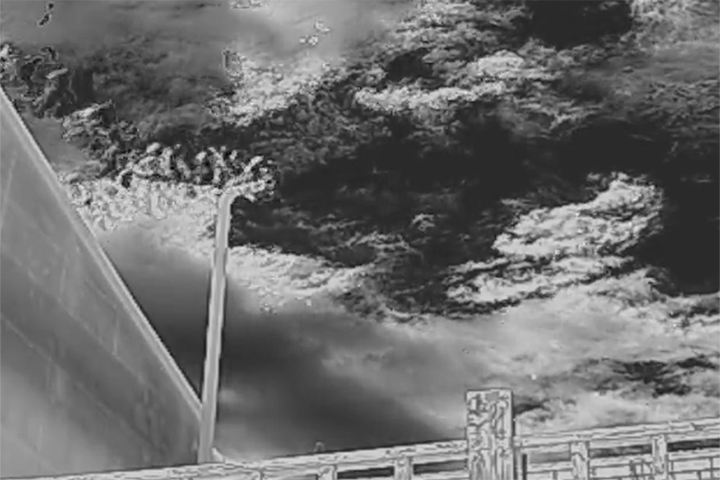

  • Gas Leak Detection
    Gas Leak Detection

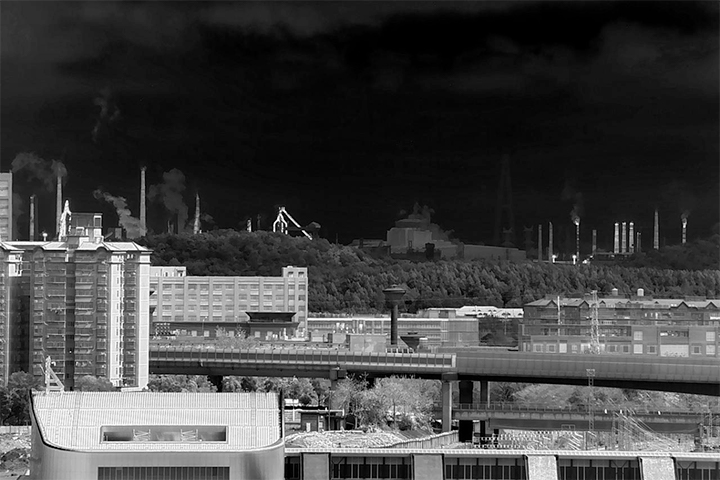

  • Gas Leak Detection
    Gas Leak Detection

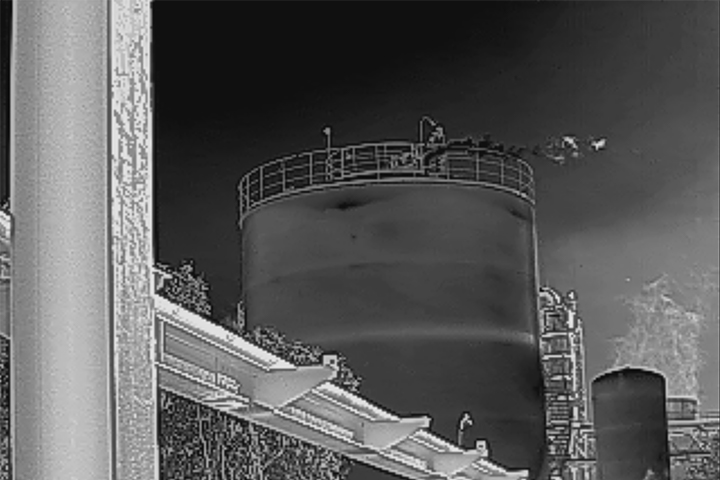

  • Gas Leak Detection
    Gas Leak Detection

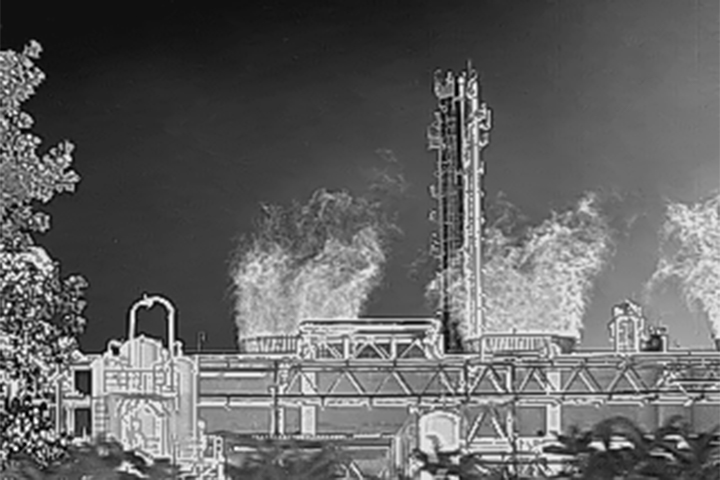

  • Gas Leak Detection
    Gas Leak Detection

Technical Specifications
Product ModelEYAS330G Gas Detection Infrared AD ModuleEYAS330G2 Gas Detection Infrared AD Module
Performance Specifications
Resolution320×256
Pixel Pitch30μm
CoolerRS058RS058I
Spectral Response3.2μm ±0.1μm ~ 3.5μm ±0.1μm
Cool-down Time (25℃)≤6min 30s≤7min
Typical NETD10mK (F1.5)
Operating Modes
Frame RateAdjustable 1~200Hz
Operating ModeSnapshot mode; Integration mode ITR; Windowing function; Anti-blooming function
Electrical Characteristics
Standard External InterfaceQSH 60-pin
Digital VideoCameralink: 16bit raw detector data output
External SyncCC1: INT / frame external sync; CC2: MC external sync
CommunicationCameralink serial port: TFG+/- , TC+/- ; 9600bps
Power SupplyOne imaging board power supply 5V, one cooler power supply 24VOne imaging board power supply 5V, one cooler power supply 12V
Power Consumption7W (stable power consumption)
Dimensions (mm)142×58.5×71
Weight≤680g
Operating Temperature-40°C ~ +60°C
